SMART

Semplice funzionalità

[vc_row row_type=”row” use_row_as_full_screen_section=”no” type=”full_width” text_align=”left” css_animation=”” bg_type=”bg_color” bg_color_value=”#ffffff” css=”.vc_custom_1494509362085{padding: 20px !important;}”][vc_column][vc_row_inner row_type=”row” type=”full_width” use_row_as_full_screen_section_slide=”no” text_align=”left” css_animation=””][vc_column_inner width=”1/2″][vc_single_image image=”1414″ img_size=”full” onclick=”link_image” qode_css_animation=””][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

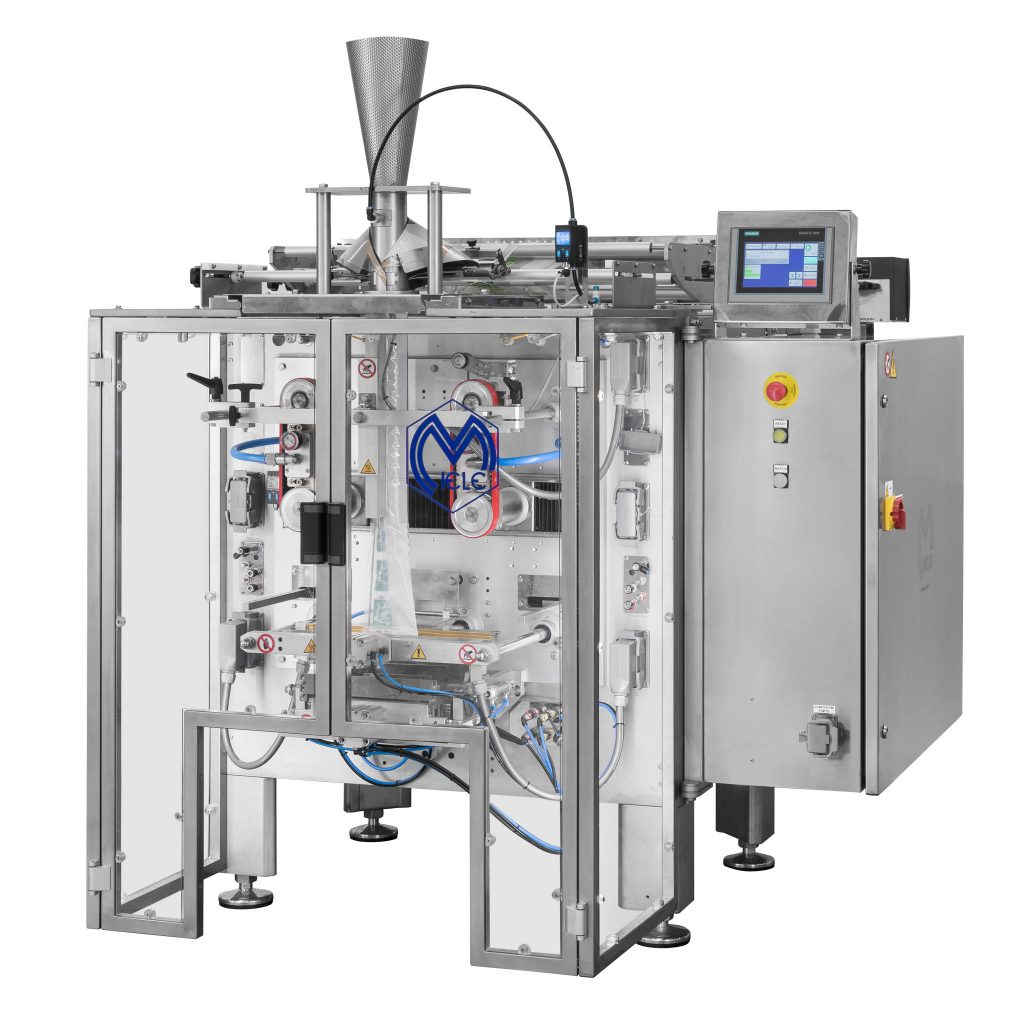

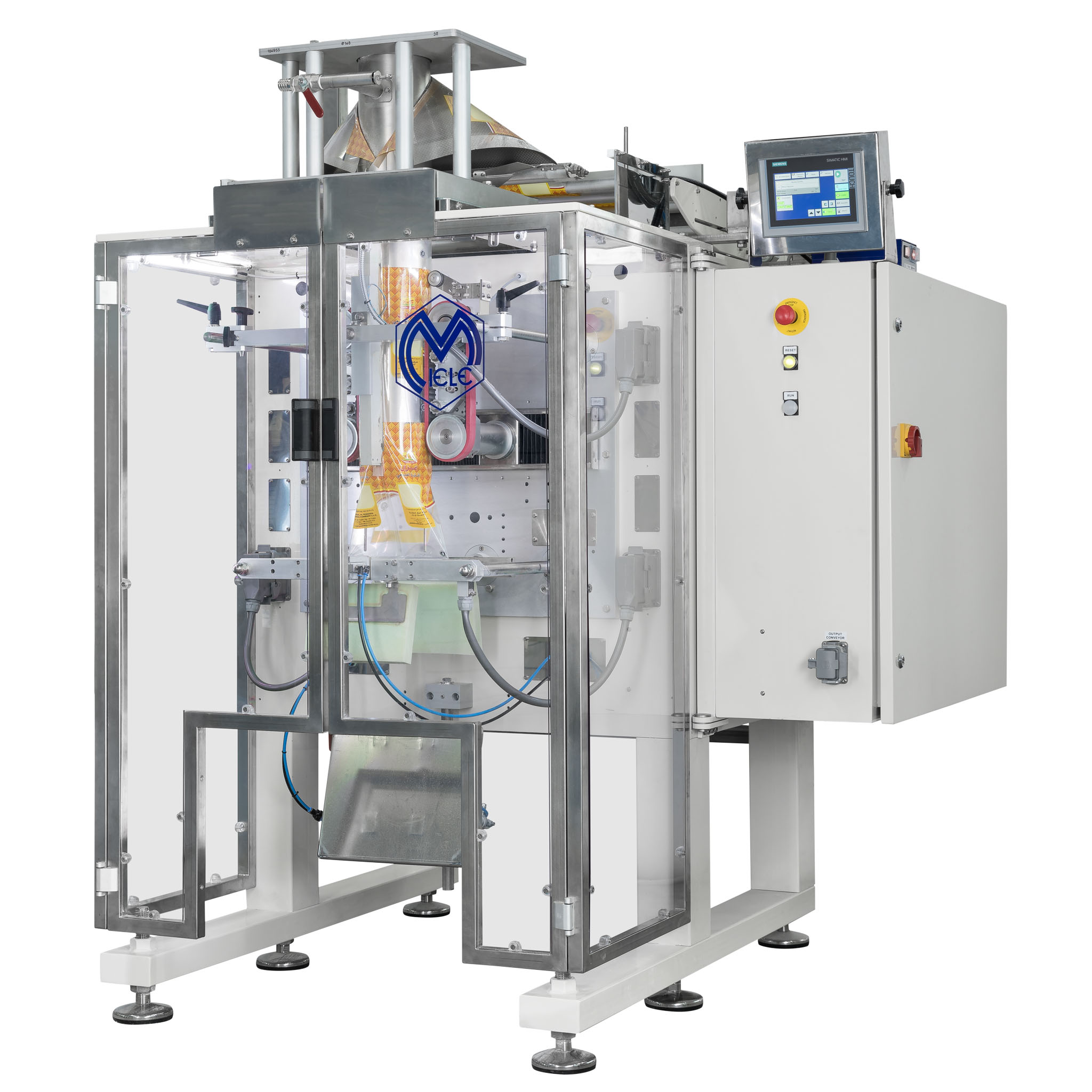

Smart è una macchina confezionatrice verticale che vanta caratteristiche quali la semplicità e la qualità dei materiali. Questa macchina rappresenta una soluzione intelligente per ottenere performance con investimenti limitati. È prevista un’ampia gamma di opzioni per molteplici applicazioni, che vanno dal confezionamento di prodotti freschi con pesatrici multiteste, alla produzione di confezioni per polveri con dosatori volumetrici. La velocità di produzione arriva a 70 confezioni al minuto.

[/vc_column_text][/vc_column_inner][vc_column_inner][ultimate_spacer height=”50″][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

Caratteristiche meccaniche

[/vc_column_text][ultimate_spacer height=”15″][vc_column_text]

  • Struttura di base in acciaio verniciato o inox AISI 304;
  • Parti a contatto con il prodotto in acciaio inox AISI 304/316;
  • Tubo formatore in acciaio inox di alto spessore;

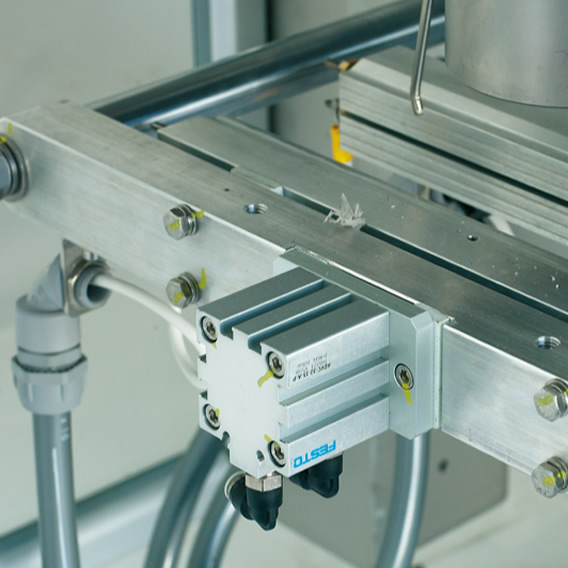

  • Barre di saldatura azionate tramite cilindro pneumatico regolabile;

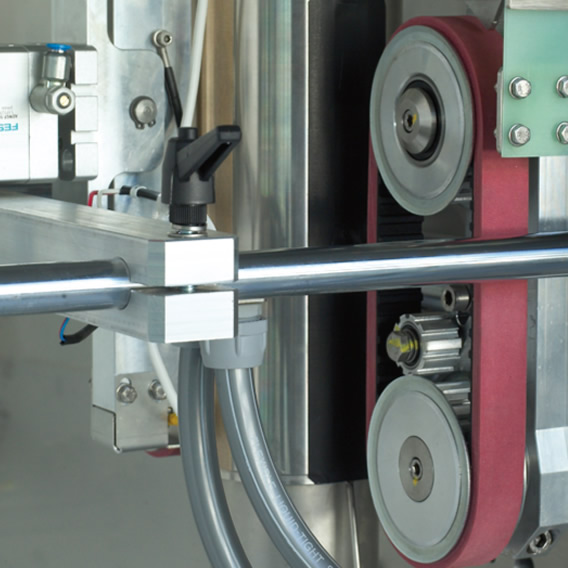

  • Traino film con motorizzazione indipendente controllata elettronicamente.

[/vc_column_text][ultimate_spacer height=”60″][vc_column_text]

Caratteristiche elettriche

[/vc_column_text][ultimate_spacer height=”15″][vc_column_text]

  • Alimentazione elettrica 400 V trifase + neutro + terra;
  • Consumo indicativo 3 KW;
  • Controllo elettronico di tutte le funzioni della macchina;
  • PLC di controllo SIEMENS serie 200 di ultima generazione;
  • Pannello operatore SIEMENS touch screen;
  • Capacità di memoria: 40 programmi di lavoro;
  • Diagnostica in grado di segnalare ogni tipo di anomalia;
  • Sistema elettronico di misurazione e regolazione della lunghezza busta.

[/vc_column_text][ultimate_spacer height=”60″][vc_column_text]

Sistemi di dosatura

[/vc_column_text][ultimate_spacer height=”15″][vc_column_text]

  • Pesatrice multiteste;
  • Pesatrici lineari;
  • Dosatore volumetrico;
  • Dosatore volumetrico per surgelati;
  • Dosatore a piattelli;

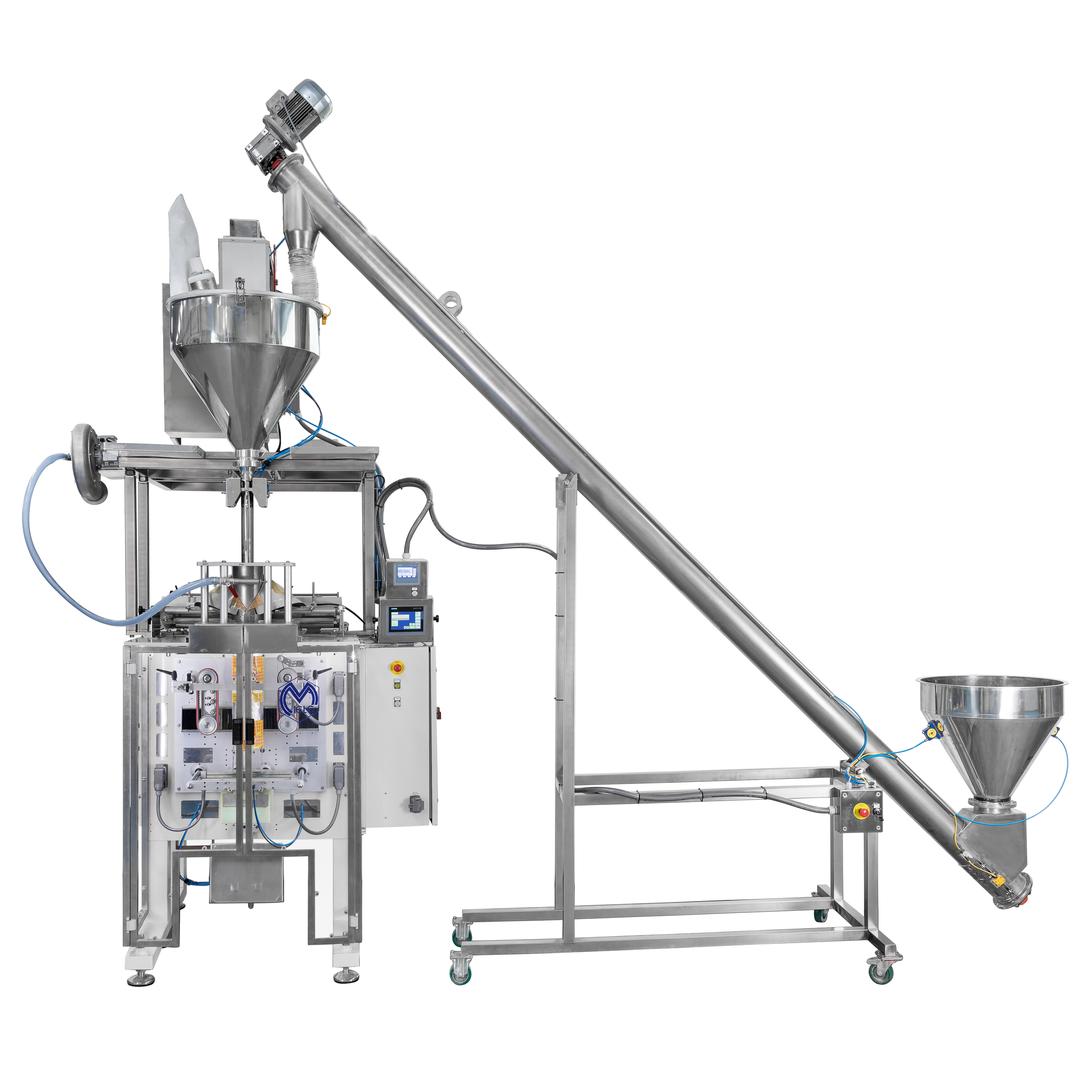

  • Dosatore a coclea;
  • Contapezzi.

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

Versioni speciali

[/vc_column_text][ultimate_spacer height=”15″][vc_column_text]

  • Esecuzione interamente in acciaio inox;
  • Inclinata per prodotti fragili;
  • Ribassata;
  • Protezione IP 65 water proof;
  • Quadro separato.

[/vc_column_text][ultimate_spacer height=”60″][vc_column_text]

Accessori principali

[/vc_column_text][ultimate_spacer height=”15″][vc_column_text]

  • Svolgimento bobina motorizzato;
  • Traino film con motore brushless;
  • Sistema sottovuoto per busta a cuscino e a fondo quadro;
  • Fotocellula centratura stampa;
  • Fondo quadro e soffietto;
  • Iniezione gas;
  • Stampatore;
  • Saldatura degli spigoli;
  • Otturatore per rifasamento prodotto;
  • Fotocellula intasamento tramoggia;
  • Sistema di centraggio film automatico;
  • Piatto per sostegno busta con pesi grandi;
  • Etichettatrice;
  • Clippatrice;
  • Quadro separabile;
  • Versione destra o sinistra;
  • Buste eurohole;
  • Buste con maniglia;
  • Giunzione film facilitata e saldata;
  • Rullo motorizzato.

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row row_type=”row” use_row_as_full_screen_section=”yes” type=”grid” text_align=”left” css_animation=”” bg_type=”grad” css=”.vc_custom_1496134649560{padding-top: 30px !important;padding-right: 60px !important;padding-bottom: 30px !important;padding-left: 60px !important;}” bg_grad=”background: -webkit-gradient(linear, left top, left bottom, color-stop(0%, #A12D6D), color-stop(99%, #C32F7E));background: -moz-linear-gradient(top,#A12D6D 0%,#C32F7E 99%);background: -webkit-linear-gradient(top,#A12D6D 0%,#C32F7E 99%);background: -o-linear-gradient(top,#A12D6D 0%,#C32F7E 99%);background: -ms-linear-gradient(top,#A12D6D 0%,#C32F7E 99%);background: linear-gradient(top,#A12D6D 0%,#C32F7E 99%);”][vc_column width=”1/3″ offset=”vc_hidden-md vc_hidden-sm vc_hidden-xs”][ultimate_spacer height=”55″][vc_column_text]

IDEALE PER…

[/vc_column_text][/vc_column][vc_column width=”2/3″ offset=”vc_hidden-md vc_hidden-sm vc_hidden-xs”][vc_tta_pageable no_fill_content_area=”1″ autoplay=”10″ active_section=”4″ css_animation=”bounceIn”][vc_tta_section title=”1″ tab_id=”1496997287857-f599b301-fbb7″][vc_row_inner row_type=”row” type=”full_width” use_row_as_full_screen_section_slide=”no” text_align=”left” css_animation=””][vc_column_inner width=”1/3″][vc_single_image image=”22″ img_size=”full” add_caption=”yes” alignment=”center” onclick=”custom_link” qode_css_animation=”” link=”https://www.mielepackaging.it/macchinari-per-pasta/”][vc_column_text]

Pasta

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”34″ img_size=”full” qode_css_animation=””][vc_column_text]

Verdura fresca

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”33″ img_size=”full” qode_css_animation=””][vc_column_text]

Snacks

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_tta_section][vc_tta_section title=”2″ tab_id=”1496997858617-0bcf9662-1064″][vc_row_inner row_type=”row” type=”full_width” use_row_as_full_screen_section_slide=”no” text_align=”left” css_animation=””][vc_column_inner width=”1/3″][vc_single_image image=”427″ img_size=”full” add_caption=”yes” alignment=”center” onclick=”custom_link” qode_css_animation=”” link=”https://www.mielepackaging.it/macchinari-per-zucchero/”][vc_column_text]

Zucchero

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”426″ img_size=”full” onclick=”custom_link” qode_css_animation=”” link=”https://www.mielepackaging.it/macchinari-per-caffe/”][vc_column_text]

Caffè

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”428″ img_size=”full” onclick=”custom_link” qode_css_animation=”” link=”https://www.mielepackaging.it/macchinari-per-polveri-detergenti/”][vc_column_text]

Detergenti

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_tta_section][vc_tta_section title=”3″ tab_id=”1496998083513-b3c508c7-08df”][vc_row_inner row_type=”row” type=”full_width” use_row_as_full_screen_section_slide=”no” text_align=”left” css_animation=””][vc_column_inner width=”1/3″][vc_single_image image=”195″ img_size=”full” add_caption=”yes” alignment=”center” qode_css_animation=””][vc_column_text]

Pet Food

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”196″ img_size=”full” qode_css_animation=””][vc_column_text]

Cosmetico & Farmaceutico

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”198″ img_size=”full” qode_css_animation=””][vc_column_text]

Dolciumi

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_tta_section][vc_tta_section title=”4″ tab_id=”1496998238452-ec4f8957-7e48″][vc_row_inner row_type=”row” type=”full_width” use_row_as_full_screen_section_slide=”no” text_align=”left” css_animation=””][vc_column_inner width=”1/3″][vc_single_image image=”193″ img_size=”full” add_caption=”yes” alignment=”center” qode_css_animation=””][vc_column_text]

Formaggio

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”191″ img_size=”full” qode_css_animation=””][vc_column_text]

Alimenti freschi

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”52″ img_size=”full” qode_css_animation=””][vc_column_text]

Surgelati

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_tta_section][/vc_tta_pageable][/vc_column][/vc_row][vc_row row_type=”row” use_row_as_full_screen_section=”yes” type=”grid” text_align=”left” css_animation=”” bg_type=”bg_color” css=”.vc_custom_1494516376002{padding-top: 30px !important;padding-right: 60px !important;padding-bottom: 30px !important;padding-left: 60px !important;}” bg_color_value=”#a5a5a5″][vc_column width=”1/3″][ultimate_spacer height=”20″][vc_column_text]

AREA DOWNLOAD

[/vc_column_text][/vc_column][vc_column width=”2/3″][ultimate_spacer height=”20″][vc_row_inner row_type=”row” type=”full_width” use_row_as_full_screen_section_slide=”no” text_align=”left” css_animation=””][vc_column_inner][vc_column_text][wpdm_category id=”smart,” cols=”1″ toolbar=0 item_per_page=10 template=”link-template-default.php”][/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row]

Materiali d’incarto

Polipropilene, laminati ed accoppiati in genere, film a barriera, film idrosolubile, film di origine biologica e altri materiali termosaldabili come il polietilene.

Perchè sceglierla

Grande varietà di accessori: ottima soluzione sia per Clienti con una notevole quantità di prodotti e formati diversi, che per Clienti con produzioni particolari (confezioni sottovuoto, squadrate e non, clip/twist, prodotti fragili nella versione inclinata). Ottimo rapporto qualità/prezzo. Ottime velocità di produzione, grazie al tradizionale sistema Miele per la chiusura delle ganasce tramite azionamento pneumatico. Precisione e affidabilità senza confronti. Costi contenuti per integrare opzioni presenti su macchine di livello superiore: traino film mediante servomotore, doppio sistema di saldatura per lavorare sia con film laminati che con polietilene, etc. Migliore soluzione presente sul mercato per formati mediograndi. Limitata richiesta di manutenzione e servizio. Facilità di accesso alle parti interne. Facile da pulire.

Categorie

Confezionatrice verticale

SMART

Simple functionality

[vc_row row_type=”row” use_row_as_full_screen_section=”no” type=”full_width” text_align=”left” css_animation=”” bg_type=”bg_color” bg_color_value=”#ffffff” css=”.vc_custom_1494509362085{padding: 20px !important;}”][vc_column][vc_row_inner row_type=”row” type=”full_width” use_row_as_full_screen_section_slide=”no” text_align=”left” css_animation=””][vc_column_inner width=”1/2″][vc_single_image image=”1414″ img_size=”full” onclick=”link_image” qode_css_animation=””][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

Smart is a vertical packaging machine with features as simplicity and quality of materials. This machine is an intelligent solution to obtain performance with limited investments. We offer a large range of options for a multiplicity of applications: from packaging fresh products with multi-head weighers, through to the production of packages for powders with volumetric dosing system. Its production speed reaches 70 packages per minute.

[/vc_column_text][/vc_column_inner][vc_column_inner][ultimate_spacer height=”50″][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

Mechanical characteristics

[/vc_column_text][ultimate_spacer height=”15″][vc_column_text]

  • Basic structure in painted steel or in AISI 304 stainless steel;
  • Parts in contact with the product in AISI 304/316 stainless steel;
  • Forming tube in very thick stainless steel;
  • Sealing bars activated by an adjustable pneumatic cylinder;
  • Film drive with independent electronically controlled motorisation.

[/vc_column_text][ultimate_spacer height=”60″][vc_column_text]

Electrical specifications

[/vc_column_text][ultimate_spacer height=”15″][vc_column_text]

  • Electrical power supply 400 V 3-phase + neutral + earth;
  • Indicative consumption 3 KW;
  • All machine functions electronically controlled;
  • Control PLC: latest generation series 200 by SIEMENS;
  • SIEMENS touch screen operator panel;
  • Memory capacity: 40 work programs;
  • Diagnostics signalling any type of fault;
  • Electronic system for measuring and adjusting bag length.

[/vc_column_text][ultimate_spacer height=”60″][vc_column_text]

Dosing systems

[/vc_column_text][ultimate_spacer height=”15″][vc_column_text]

  • Multi-head weigher;
  • Linear weighers;
  • Volumetric dosing system;
  • Volumetric dosing system for deep-frozen foods;
  • Plate dosing system;
  • Screw dosing system;
  • Counter.

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

Special versions

[/vc_column_text][ultimate_spacer height=”15″][vc_column_text]

  • Entirely in stainless steel;
  • Inclined for fragile products;
  • Lowered;
  • IP 65 waterproof protection;
  • Separate electrical panel.

[/vc_column_text][ultimate_spacer height=”60″][vc_column_text]

Main accessories

[/vc_column_text][ultimate_spacer height=”15″][vc_column_text]

  • Motorised reel unwinding;
  • Film drive with brushless motor;
  • Vacuum system for pillow and square bottom bag;
  • Print centring photocell;
  • Square bottom and gusseted format;
  • Gas injection;
  • Printer;
  • Corner seal;
  • Timing hopper;
  • Jammed hopper photocell;
  • Automatic film centring system;
  • Plate to support bag with large weights;
  • Labelling unit;
  • Clipper;
  • Removable electrical panel;
  • Right or left version;
  • Eurohole bags;
  • Bags with handle;
  • Facilitated and sealed film splice;
  • Motorised roller.

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row row_type=”row” use_row_as_full_screen_section=”yes” type=”grid” text_align=”left” css_animation=”” bg_type=”grad” css=”.vc_custom_1496134649560{padding-top: 30px !important;padding-right: 60px !important;padding-bottom: 30px !important;padding-left: 60px !important;}” bg_grad=”background: -webkit-gradient(linear, left top, left bottom, color-stop(0%, #A12D6D), color-stop(99%, #C32F7E));background: -moz-linear-gradient(top,#A12D6D 0%,#C32F7E 99%);background: -webkit-linear-gradient(top,#A12D6D 0%,#C32F7E 99%);background: -o-linear-gradient(top,#A12D6D 0%,#C32F7E 99%);background: -ms-linear-gradient(top,#A12D6D 0%,#C32F7E 99%);background: linear-gradient(top,#A12D6D 0%,#C32F7E 99%);”][vc_column width=”1/3″ offset=”vc_hidden-md vc_hidden-sm vc_hidden-xs”][ultimate_spacer height=”55″][vc_column_text]

SUITABLE FOR…

[/vc_column_text][/vc_column][vc_column width=”2/3″ offset=”vc_hidden-md vc_hidden-sm vc_hidden-xs”][vc_tta_pageable no_fill_content_area=”1″ autoplay=”10″ active_section=”4″ css_animation=”bounceIn”][vc_tta_section title=”1″ tab_id=”1496997287857-f599b301-fbb7″][vc_row_inner row_type=”row” type=”full_width” use_row_as_full_screen_section_slide=”no” text_align=”left” css_animation=””][vc_column_inner width=”1/3″][vc_single_image image=”22″ img_size=”full” add_caption=”yes” alignment=”center” onclick=”custom_link” qode_css_animation=”” link=”https://www.mielepackaging.it/macchinari-per-pasta/”][vc_column_text]

Pasta

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”34″ img_size=”full” qode_css_animation=””][vc_column_text]

Fresh vegetables

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”33″ img_size=”full” qode_css_animation=””][vc_column_text]

Snacks

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_tta_section][vc_tta_section title=”2″ tab_id=”1496997858617-0bcf9662-1064″][vc_row_inner row_type=”row” type=”full_width” use_row_as_full_screen_section_slide=”no” text_align=”left” css_animation=””][vc_column_inner width=”1/3″][vc_single_image image=”427″ img_size=”full” add_caption=”yes” alignment=”center” onclick=”custom_link” qode_css_animation=”” link=”https://www.mielepackaging.it/macchinari-per-zucchero/”][vc_column_text]

Sugar

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”426″ img_size=”full” onclick=”custom_link” qode_css_animation=”” link=”https://www.mielepackaging.it/macchinari-per-caffe/”][vc_column_text]

Coffee

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”428″ img_size=”full” onclick=”custom_link” qode_css_animation=”” link=”https://www.mielepackaging.it/macchinari-per-polveri-detergenti/”][vc_column_text]

Detergents

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_tta_section][vc_tta_section title=”3″ tab_id=”1496998083513-b3c508c7-08df”][vc_row_inner row_type=”row” type=”full_width” use_row_as_full_screen_section_slide=”no” text_align=”left” css_animation=””][vc_column_inner width=”1/3″][vc_single_image image=”195″ img_size=”full” add_caption=”yes” alignment=”center” qode_css_animation=””][vc_column_text]

Pet Food

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”196″ img_size=”full” qode_css_animation=””][vc_column_text]

Cosmetic & Pharmaceutical

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”198″ img_size=”full” qode_css_animation=””][vc_column_text]

Sweets

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_tta_section][vc_tta_section title=”4″ tab_id=”1496998238452-ec4f8957-7e48″][vc_row_inner row_type=”row” type=”full_width” use_row_as_full_screen_section_slide=”no” text_align=”left” css_animation=””][vc_column_inner width=”1/3″][vc_single_image image=”193″ img_size=”full” add_caption=”yes” alignment=”center” qode_css_animation=””][vc_column_text]

Cheese

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”191″ img_size=”full” qode_css_animation=””][vc_column_text]

Fresh food

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”52″ img_size=”full” qode_css_animation=””][vc_column_text]

Frozen foods

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_tta_section][/vc_tta_pageable][/vc_column][/vc_row][vc_row row_type=”row” use_row_as_full_screen_section=”yes” type=”grid” text_align=”left” css_animation=”” bg_type=”bg_color” css=”.vc_custom_1494516376002{padding-top: 30px !important;padding-right: 60px !important;padding-bottom: 30px !important;padding-left: 60px !important;}” bg_color_value=”#a5a5a5″][vc_column width=”1/3″][ultimate_spacer height=”20″][vc_column_text]

AREA DOWNLOAD

[/vc_column_text][/vc_column][vc_column width=”2/3″][ultimate_spacer height=”20″][vc_row_inner row_type=”row” type=”full_width” use_row_as_full_screen_section_slide=”no” text_align=”left” css_animation=””][vc_column_inner][vc_column_text][wpdm_category id=”smart,” cols=”1″ toolbar=0 item_per_page=10 template=”link-template-default.php”][/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row]

Why choose it?

A large range of accessories: an excellent solution both for Customers with a large quantity of products and different formats, and for Customers with special productions (vacuum packages, square and non square packages, clip/ twist, fragile products in the inclined version). Highly cost effective. Excellent production speeds, thanks to the traditional Miele system which closes the jaws by pneumatic activation. Unbeatable precision and reliability. Low costs to integrate options present on higher level machines: film drive by servomotor, double sealing system for work with both laminated films and polyethylene, etc. The best solution on the market for medium-large formats. Limited maintenance and servicing required. Easy access to internal parts. Easy to clean.

Wrapping materials

Polypropylene, laminates and coupled materials in general, barrier film, water-soluble film, film of biological origin, and other heat sealing materials such as polyethylene.

Categorie

Vertical packaging machine
