OLIMPIA 4000 SIMOTION

Elevate prestazioni

[vc_row row_type=”row” use_row_as_full_screen_section=”no” type=”full_width” text_align=”left” css_animation=”” bg_type=”bg_color” bg_color_value=”#ffffff” css=”.vc_custom_1494509362085{padding: 20px !important;}”][vc_column][vc_row_inner row_type=”row” type=”full_width” use_row_as_full_screen_section_slide=”no” text_align=”left” css_animation=””][vc_column_inner width=”1/2″][vc_single_image image=”266″ img_size=”full” onclick=”link_image” qode_css_animation=””][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

Olimpia 4000 Simotion è una macchina confezionatrice verticale alternata, per la produzione di una vastissima gamma di confezioni. Le sue principali caratteristiche sono: velocità, flessibilità e altissima qualità dei materiali. Nella sua categoria si posiziona come macchina di alta gamma, in grado di realizzare fino a 120 confezioni al minuto. Dotata di un ampio ventaglio di applicazioni e adatta a risolvere problemi complessi, è facile da usare per semplicità e robustezza meccanica e per un’elettronica di livello superiore.

[/vc_column_text][/vc_column_inner][vc_column_inner][ultimate_spacer height=”50″][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

Caratteristiche meccaniche

[/vc_column_text][ultimate_spacer height=”15″][vc_column_text]

  • Struttura di base in acciaio verniciato o inox AISI 304;
  • Parti a contatto con il prodotto in acciaio inox AISI 304/316;
  • Tubo formatore in acciaio inox di alto spessore;
  • Barre di saldatura azionate con motore brushless controllato da azionamento digitale di ultima generazione;
  • Traino film con motorizzazione indipendente con motore brushless;
  • Svolgimento bobina motorizzato.

[/vc_column_text][ultimate_spacer height=”60″][vc_column_text]

Caratteristiche elettriche

[/vc_column_text][ultimate_spacer height=”15″][vc_column_text]

  • Alimentazione elettrica 400 V trifase + neutro + terra;
  • Consumo indicativo 3 KW;
  • Controllo elettronico di tutte le funzioni della macchina;
  • PLC di controllo SIMOTION di ultima generazione;
  • Pannello operatore touch screen;
  • Capacità di memoria: 100 programmi di lavoro;
  • Diagnostica in grado di segnalare ogni tipo di anomalia;
  • Temperature di saldatura memorizzate nel programma di lavoro;
  • Sistema elettronico di misurazione e regolazione della lunghezza busta.

[/vc_column_text][ultimate_spacer height=”60″][vc_column_text]

Sistemi di dosatura

[/vc_column_text][ultimate_spacer height=”15″][vc_column_text]

  • Pesatrice multiteste;
  • Dosatori volumetrici ad alta velocità;
  • Dosatore a coclea;
  • Contapezzi.

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

Versioni speciali

[/vc_column_text][ultimate_spacer height=”15″][vc_column_text]

  • Esecuzione interamente in acciaio inox;
  • Inclinata per prodotti fragili;
  • Inclinabile;
  • Saldatura ad ultrasuoni;
  • Protezione IP 65 water proof;
  • Quadro separato e staccabile.

[/vc_column_text][ultimate_spacer height=”60″][vc_column_text]

Accessori principali

[/vc_column_text][ultimate_spacer height=”15″][vc_column_text]

  • Fotocellula centratura stampa;
  • Fondo quadro e soffietto;
  • Iniezione gas;
  • Stampatore;
  • Saldatura degli spigoli;
  • Otturatore per rifasamento prodotto;
  • Vibrazione busta per assestamento prodotto;
  • Fotocellula intasamento tramoggia;
  • Sistema di centraggio film automatico;
  • Piatto per sostegno busta con pesi grandi;
  • Etichettatrice;
  • Buste heurohole;
  • Buste con maniglia;
  • Supporto bobina a espansione pneumatica;
  • Preallarme fine-film;
  • Giunzione facilitata e saldata;
  • Supporto bobina doppia;
  • Supervisione dei dati di produzione;
  • Rullo motorizzato;
  • Sistema di traino con cinghia sottovuoto;
  • Doppio fondo quadro;
  • Sistema sottovuoto per busta a cuscino e a fondo quadro;
  • Stabilopack, doypack.

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row row_type=”row” use_row_as_full_screen_section=”yes” type=”grid” text_align=”left” css_animation=”” bg_type=”grad” ult_hide_row=”ult_hide_row_value” ult_hide_row_tablet=”tablet” ult_hide_row_tablet_small=”xs_tablet” ult_hide_row_mobile=”mobile” ult_hide_row_mobile_large=”xl_mobile” css=”.vc_custom_1498581462585{padding-top: 30px !important;padding-right: 60px !important;padding-bottom: 30px !important;padding-left: 60px !important;}” bg_grad=”background: -webkit-gradient(linear, left top, left bottom, color-stop(0%, #182A69), color-stop(99%, #004498));background: -moz-linear-gradient(top,#182A69 0%,#004498 99%);background: -webkit-linear-gradient(top,#182A69 0%,#004498 99%);background: -o-linear-gradient(top,#182A69 0%,#004498 99%);background: -ms-linear-gradient(top,#182A69 0%,#004498 99%);background: linear-gradient(top,#182A69 0%,#004498 99%);”][vc_column width=”1/3″ offset=”vc_hidden-md vc_hidden-sm vc_hidden-xs”][ultimate_spacer height=”55″][vc_column_text]

IDEALE PER…

[/vc_column_text][/vc_column][vc_column width=”2/3″ offset=”vc_hidden-md vc_hidden-sm vc_hidden-xs”][vc_tta_pageable no_fill_content_area=”1″ autoplay=”20″ active_section=”1″ css_animation=”bounceIn”][vc_tta_section title=”1″ tab_id=”1496997287857-f599b301-fbb7″][vc_row_inner row_type=”row” type=”full_width” use_row_as_full_screen_section_slide=”no” text_align=”left” css_animation=””][vc_column_inner width=”1/3″][vc_single_image image=”22″ img_size=”full” add_caption=”yes” alignment=”center” onclick=”custom_link” qode_css_animation=”” link=”https://www.mielepackaging.it/macchinari-per-pasta/”][vc_column_text]

Pasta

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”34″ img_size=”full” qode_css_animation=””][vc_column_text]

Verdura fresca

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”33″ img_size=”full” qode_css_animation=””][vc_column_text]

Snacks

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_tta_section][vc_tta_section title=”2″ tab_id=”1496997858617-0bcf9662-1064″][vc_row_inner row_type=”row” type=”full_width” use_row_as_full_screen_section_slide=”no” text_align=”left” css_animation=””][vc_column_inner width=”1/3″][vc_single_image image=”427″ img_size=”full” add_caption=”yes” alignment=”center” onclick=”custom_link” qode_css_animation=”” link=”https://www.mielepackaging.it/macchinari-per-zucchero/”][vc_column_text]

Zucchero

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”426″ img_size=”full” onclick=”custom_link” qode_css_animation=”” link=”https://www.mielepackaging.it/macchinari-per-caffe/”][vc_column_text]

Caffè

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”428″ img_size=”full” onclick=”custom_link” qode_css_animation=”” link=”https://www.mielepackaging.it/macchinari-per-polveri-detergenti/”][vc_column_text]

Detergenti

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_tta_section][vc_tta_section title=”3″ tab_id=”1496998083513-b3c508c7-08df”][vc_row_inner row_type=”row” type=”full_width” use_row_as_full_screen_section_slide=”no” text_align=”left” css_animation=””][vc_column_inner width=”1/3″][vc_single_image image=”195″ img_size=”full” add_caption=”yes” alignment=”center” qode_css_animation=””][vc_column_text]

Pet Food

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”196″ img_size=”full” qode_css_animation=””][vc_column_text]

Cosmetico & Farmaceutico

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”198″ img_size=”full” qode_css_animation=””][vc_column_text]

Dolciumi

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_tta_section][vc_tta_section title=”4″ tab_id=”1496998238452-ec4f8957-7e48″][vc_row_inner row_type=”row” type=”full_width” use_row_as_full_screen_section_slide=”no” text_align=”left” css_animation=””][vc_column_inner width=”1/3″][vc_single_image image=”193″ img_size=”full” add_caption=”yes” alignment=”center” qode_css_animation=””][vc_column_text]

Formaggio

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”191″ img_size=”full” qode_css_animation=””][vc_column_text]

Alimenti freschi

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”52″ img_size=”full” qode_css_animation=””][vc_column_text]

Surgelati

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_tta_section][/vc_tta_pageable][/vc_column][/vc_row][vc_row row_type=”row” use_row_as_full_screen_section=”yes” type=”grid” text_align=”left” css_animation=”” bg_type=”bg_color” css=”.vc_custom_1494516376002{padding-top: 30px !important;padding-right: 60px !important;padding-bottom: 30px !important;padding-left: 60px !important;}” bg_color_value=”#a5a5a5″][vc_column width=”1/3″][ultimate_spacer height=”20″][vc_column_text]

AREA DOWNLOAD

[/vc_column_text][/vc_column][vc_column width=”2/3″][ultimate_spacer height=”20″][vc_row_inner row_type=”row” type=”full_width” use_row_as_full_screen_section_slide=”no” text_align=”left” css_animation=””][vc_column_inner][vc_column_text][wpdm_category id=”olimpia-4000-simotion,” cols=”1″ toolbar=0 item_per_page=10 template=”link-template-default.php”][/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row]

Perchè sceglierla

Massima velocità, innovazione meccanica, flessibilità, affidabilità, per soddisfare qualunque esigenza di confezionamento verticale alternato. Elettronica di livello superiore. Semplificazione dei processi. Soddisfazione delle esigenze di linee produttive a ciclo continuo. Combinazione di velocità, qualità della confezione e robustezza. Varietà delle esecuzioni: dai vegetali freschi alla polvere detergente. Accessori di alto livello per confezioni originali e raffinate: saldatatura degli spigoli, valvolatrice, saldatura verticale laterale, etc. Limitata richiesta di manutenzione e servizio. Alto grado di efficienza per tutte le applicazioni. Facilità di accesso alle parti interne. Facile da pulire.

Materiali d’incarto

Polipropilene, laminati ed accoppiati in genere, film a barriera, film di origine biologica e altri materiali termosaldabili come il polietilene.

Categorie

Confezionatrice verticale

OLIMPIA 4000 SIMOTION

High performance

[vc_row row_type=”row” use_row_as_full_screen_section=”no” type=”full_width” text_align=”left” css_animation=”” bg_type=”bg_color” bg_color_value=”#ffffff” css=”.vc_custom_1494509362085{padding: 20px !important;}”][vc_column][vc_row_inner row_type=”row” type=”full_width” use_row_as_full_screen_section_slide=”no” text_align=”left” css_animation=””][vc_column_inner width=”1/2″][vc_single_image image=”266″ img_size=”full” onclick=”link_image” qode_css_animation=””][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

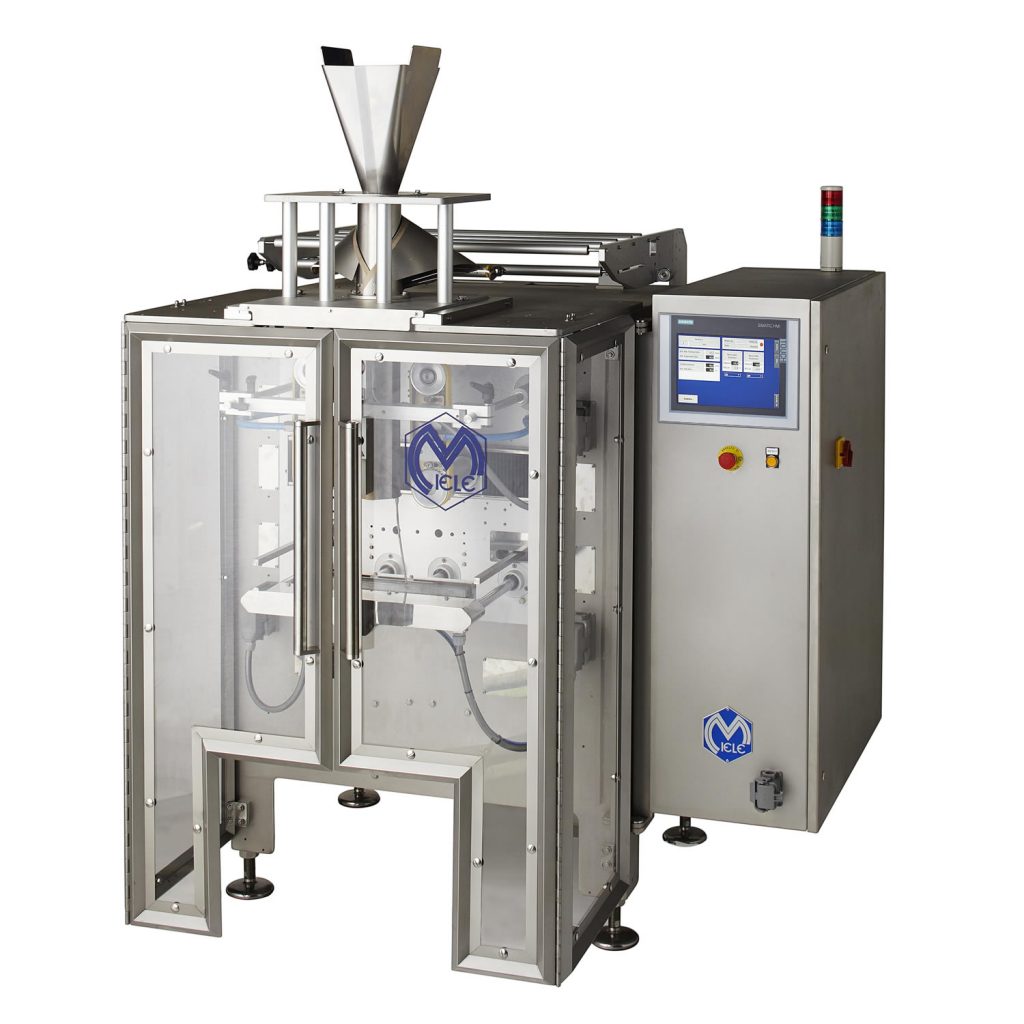

Olimpia 4000 Simotion is an alternated vertical packaging machine, for the production of a very wide range of package. Its features are speed, flexibility and ultra high quality of materials. It is a high ranging machine in its category, able to make up to 120 packages per minute. With a broad range of applications and suitable for resolving complex problems, it is easy to use, thanks to its simplicity and mechanical sturdiness and to higher level electronics.

[/vc_column_text][/vc_column_inner][vc_column_inner][ultimate_spacer height=”50″][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

Mechanical characteristics

[/vc_column_text][ultimate_spacer height=”15″][vc_column_text]

  • Basic structure in painted steel or in AISI 304 stainless steel;
  • Parts in contact with the product in AISI 304/316 stainless steel;
  • Forming tube in very thick stainless steel;
  • Sealing bars driven by a brushless motor controlled by latest generation digital activation;
  • Film drive with independent motorisation by brushless motor;
  • Motorised reel unwinding.

[/vc_column_text][ultimate_spacer height=”60″][vc_column_text]

Electrical specifications

[/vc_column_text][ultimate_spacer height=”15″][vc_column_text]

  • Electrical power supply 400 V 3-phase + neutral + earth
  • Indicative consumption 3 KW;
  • All machine functions electronically controlled;
  • Control PLC: latest generation series by SIMOTION;
  • Operator panel touch screen TFT;
  • Memory capacity: 100 work programs;
  • Diagnostics signalling any type of fault;
  • Sealing temperatures saved in the work program;
  • Electronic system for measuring and adjusting bag length.

[/vc_column_text][ultimate_spacer height=”60″][vc_column_text]

Dosing systems

[/vc_column_text][ultimate_spacer height=”15″][vc_column_text]

  • Multi-head weigher;
  • High speed volumetric dosing system;
  • Screw dosing system;
  • Counter.

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

Special versions

[/vc_column_text][ultimate_spacer height=”15″][vc_column_text]

  • Entirely in stainless steel;
  • Inclined for fragile products;
  • Inclinable;
  • IP 65 waterproof protection;
  • Separate removable panel;
  • Ultrasound sealing.

[/vc_column_text][ultimate_spacer height=”60″][vc_column_text]

Main accessories

[/vc_column_text][ultimate_spacer height=”15″][vc_column_text]

  • Print centring photocell;
  • Square bottom and gusseted format;
  • Gas injection;
  • Printer;
  • Sharp edges sealed;
  • Timing hopper;
  • Bag vibration to settle the product;
  • Jammed hopper photocell;
  • Automatic film centring system;
  • Plate to support bag with large weights;
  • Labelling unit;
  • Eurohole bags;
  • Bags with handle;
  • Pneumatic expansion reel support;
  • Film-end pre-alarm;
  • Facilitated and sealed splice;
  • Double reel support;
  • Production data collection;
  • Motorised roller;
  • Drive system with vacuum belt;
  • Double square bottom;
  • Vacuum system for pillow and square bottom bag;
  • Stabilopack, doypack.

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row row_type=”row” use_row_as_full_screen_section=”yes” type=”grid” text_align=”left” css_animation=”” bg_type=”grad” ult_hide_row=”ult_hide_row_value” ult_hide_row_tablet=”tablet” ult_hide_row_tablet_small=”xs_tablet” ult_hide_row_mobile=”mobile” ult_hide_row_mobile_large=”xl_mobile” css=”.vc_custom_1498581462585{padding-top: 30px !important;padding-right: 60px !important;padding-bottom: 30px !important;padding-left: 60px !important;}” bg_grad=”background: -webkit-gradient(linear, left top, left bottom, color-stop(0%, #182A69), color-stop(99%, #004498));background: -moz-linear-gradient(top,#182A69 0%,#004498 99%);background: -webkit-linear-gradient(top,#182A69 0%,#004498 99%);background: -o-linear-gradient(top,#182A69 0%,#004498 99%);background: -ms-linear-gradient(top,#182A69 0%,#004498 99%);background: linear-gradient(top,#182A69 0%,#004498 99%);”][vc_column width=”1/3″ offset=”vc_hidden-md vc_hidden-sm vc_hidden-xs”][ultimate_spacer height=”55″][vc_column_text]

SUITABLE FOR…

[/vc_column_text][/vc_column][vc_column width=”2/3″ offset=”vc_hidden-md vc_hidden-sm vc_hidden-xs”][vc_tta_pageable no_fill_content_area=”1″ autoplay=”20″ active_section=”1″ css_animation=”bounceIn”][vc_tta_section title=”1″ tab_id=”1496997287857-f599b301-fbb7″][vc_row_inner row_type=”row” type=”full_width” use_row_as_full_screen_section_slide=”no” text_align=”left” css_animation=””][vc_column_inner width=”1/3″][vc_single_image image=”22″ img_size=”full” add_caption=”yes” alignment=”center” onclick=”custom_link” qode_css_animation=”” link=”https://www.mielepackaging.it/macchinari-per-pasta/”][vc_column_text]

Pasta

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”34″ img_size=”full” qode_css_animation=””][vc_column_text]

Fresh vegetables

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”33″ img_size=”full” qode_css_animation=””][vc_column_text]

Snacks

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_tta_section][vc_tta_section title=”2″ tab_id=”1496997858617-0bcf9662-1064″][vc_row_inner row_type=”row” type=”full_width” use_row_as_full_screen_section_slide=”no” text_align=”left” css_animation=””][vc_column_inner width=”1/3″][vc_single_image image=”427″ img_size=”full” add_caption=”yes” alignment=”center” onclick=”custom_link” qode_css_animation=”” link=”https://www.mielepackaging.it/macchinari-per-zucchero/”][vc_column_text]

Sugar

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”426″ img_size=”full” onclick=”custom_link” qode_css_animation=”” link=”https://www.mielepackaging.it/macchinari-per-caffe/”][vc_column_text]

Coffee

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”428″ img_size=”full” onclick=”custom_link” qode_css_animation=”” link=”https://www.mielepackaging.it/macchinari-per-polveri-detergenti/”][vc_column_text]

Detergents

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_tta_section][vc_tta_section title=”3″ tab_id=”1496998083513-b3c508c7-08df”][vc_row_inner row_type=”row” type=”full_width” use_row_as_full_screen_section_slide=”no” text_align=”left” css_animation=””][vc_column_inner width=”1/3″][vc_single_image image=”195″ img_size=”full” add_caption=”yes” alignment=”center” qode_css_animation=””][vc_column_text]

Pet Food

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”196″ img_size=”full” qode_css_animation=””][vc_column_text]

Cosmetic & Pharmaceutical

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”198″ img_size=”full” qode_css_animation=””][vc_column_text]

Sweets

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_tta_section][vc_tta_section title=”4″ tab_id=”1496998238452-ec4f8957-7e48″][vc_row_inner row_type=”row” type=”full_width” use_row_as_full_screen_section_slide=”no” text_align=”left” css_animation=””][vc_column_inner width=”1/3″][vc_single_image image=”193″ img_size=”full” add_caption=”yes” alignment=”center” qode_css_animation=””][vc_column_text]

Cheese

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”191″ img_size=”full” qode_css_animation=””][vc_column_text]

Fresh food

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/3″][vc_single_image image=”52″ img_size=”full” qode_css_animation=””][vc_column_text]

Frozen foods

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_tta_section][/vc_tta_pageable][/vc_column][/vc_row][vc_row row_type=”row” use_row_as_full_screen_section=”yes” type=”grid” text_align=”left” css_animation=”” bg_type=”bg_color” css=”.vc_custom_1494516376002{padding-top: 30px !important;padding-right: 60px !important;padding-bottom: 30px !important;padding-left: 60px !important;}” bg_color_value=”#a5a5a5″][vc_column width=”1/3″][ultimate_spacer height=”20″][vc_column_text]

AREA DOWNLOAD

[/vc_column_text][/vc_column][vc_column width=”2/3″][ultimate_spacer height=”20″][vc_row_inner row_type=”row” type=”full_width” use_row_as_full_screen_section_slide=”no” text_align=”left” css_animation=””][vc_column_inner][vc_column_text][wpdm_category id=”olimpia-4000-simotion,” cols=”1″ toolbar=0 item_per_page=10 template=”link-template-default.php”][/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row]

Why choose it?

Maximum speed, mechanical innovation, flexibility, reliability, satisfying any vertical alternated packaging requirements. Higher level electronics. Simplified processes. Satisfies the needs of continuous cycle production lines. Combines speed, package quality, and strength. Packages a wide variety of products: from fresh vegetables to powder detergents. Top level accessories for original and refined packages: sharp edges sealed, valve applicator, vertical lateral sealing, etc. Limited maintenance and servicing required. A high grade of efficiency for all applications. Easy access to internal parts. Easy to clean.

Wrapping materials

Polypropylene, laminates and coupled materials in general, barrier film, water-soluble film, film of biological origin, and other heat sealing materials such as polyethylene.

Categorie

Vertical packaging machine
