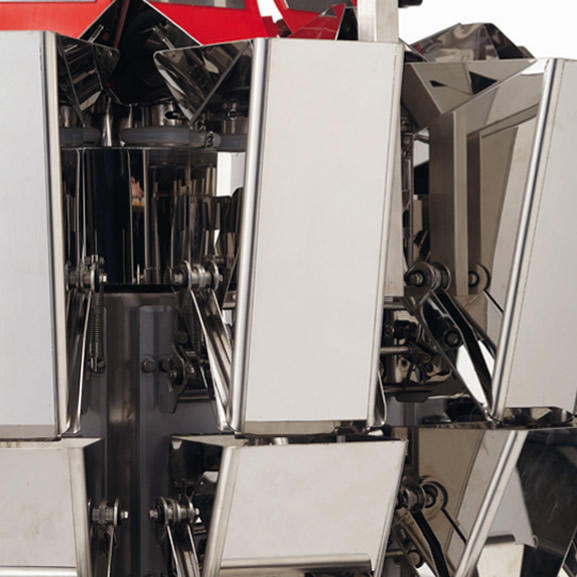

PMT 1410-30

The Miele combination Multihead weighers are completely integrated into the packaging line and offer extreme dosing precision, elevated productivity and are suprisingly easy to use with complete integration into the packing line, owing to software developed entirely by Miele. It is noted for its reliable performance and high quality materials, especially in its electronics. It’s particularly suitable for the production of packs with a maximum discharge volume of 5000 cc in a single discharge and product dimensions of up to 100-120 mm.

Technical Characteristics

• Qunatity of weigh heads: 10 – 14;
• Dosing range: 10 – 5000 g;
• Maximum discharge volum: 5000 cc in a single discharge;
• Electrical power supply: 380 Volts, 1 phase, 50 Hz, 3,0 kVa;
• Compressed air: not necessary;
• All parts in contact with the product: AISI 304 stainless steel, plain or dimpled;
• Central machine structure: aluminium and steel;
• Control unit: integrated colour touchscreen;
• Central vibrator with load cell, for constant control of the product feeding;
• Collecting chutes inclined at 50°;
• Special solutions available for fragile products.

Packaging Systems

• Combination with the vertical packing machine, giving maximum advantages thanks to the integration of electronic control;
• Can be supplied for combination with thermoformers, tray sealers, etc;
• Product distribution via a principle central vibrator to radiating vibrating channels;
• Amplitudes of vibration of the linear feed channels individually adjustable via the control panel by a digital setting;
• Removal of each hopper for rapid cleaning, without the need for tools.

Special verions

• Gentle Slope;
• Execution in IP65;
• Increades volume in weigh and accumulation hoppers;
• High speed with memory buckets.

Principle Accessories

• Product timing hopper;
• Ring shutter;
• Shockproof system for fragile products;
• Software for weight counting.

Movimentazione

• Aperture/chiusure delle tramogge di accumulo e di pesatura controllate da motori passo-passo;
• Robusta unità motore passo-passo che offre grande ripetibilità del movimento, funzionamento silenzioso ed elevata velocità;
• Celle di carico ad alta precisione protette dal sovraccarico da dispositivi meccanici inclusi in ogni testa di pesatura;
• Procedura di calibrazione delle celle di carico semplice ed affidabile (l’azzeramento avviene automaticamente durante la procedura di funzionamento normale).

Control

• Simple and immediate user interfacing with few adjustments required;
• Subdivided, logical panel areas, password protected to prevent unauthorised access to programmes and system settings;
• Free selection of minimum and maximum weight limits and possibility to reset each load cell with the setting of the programmable intervals;
• Staggered head discharge in order to eliminate any possible blockage in the packaging process;
• Multi discharge function to archieve elevated doses of weight or volume.
