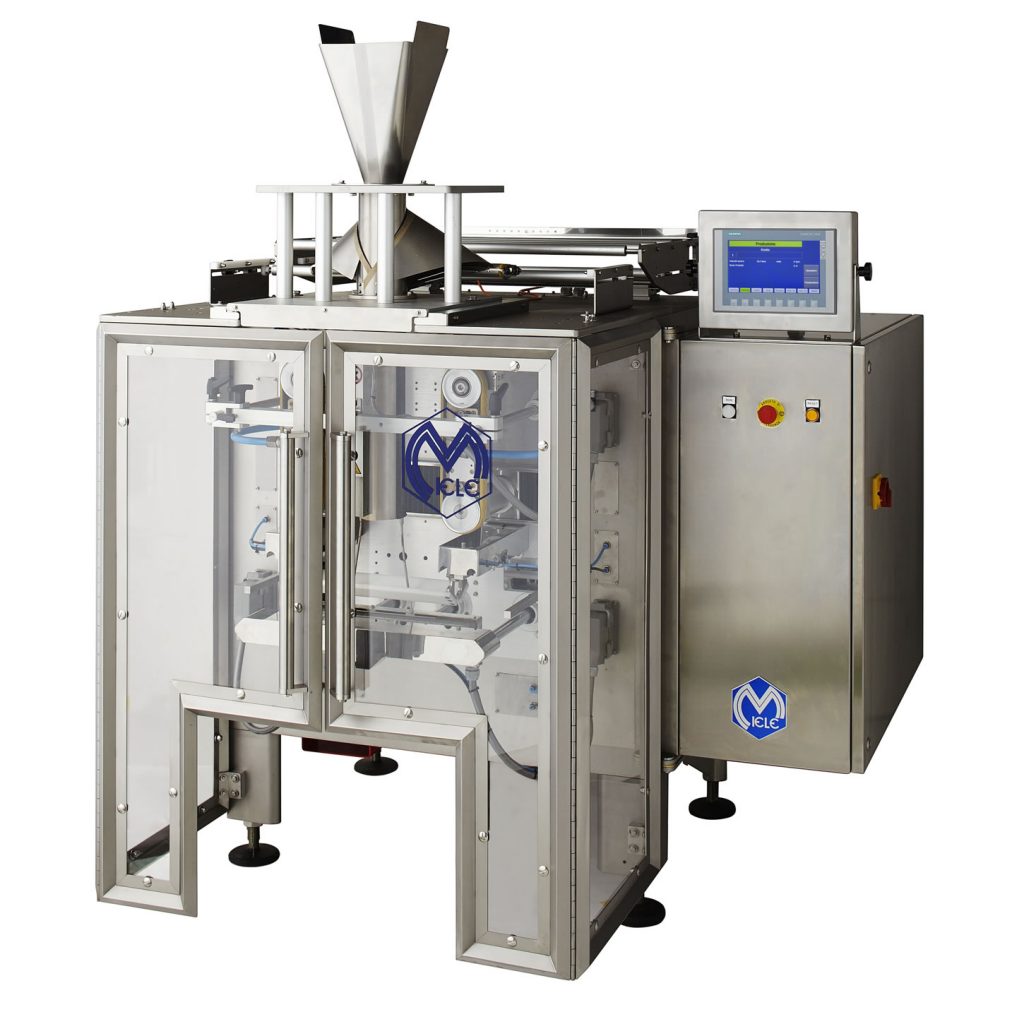

OLIMPIA 400 V BRUSHLESS

Miele’s well noted ability to work with various films, combined with the numerous accessories and options available with the Olimpia 400 V packaging machine ensures the hightest quality bags which help distinguish your products from the rest of the market. Powders, granules, pasta ane biscuits are just some of the products which can be easily packaged on this machine. The Olimpia 400 V vertical packaging machine is an intelligent solution which allows flexible production, precision and reliability, thanks to years of development and experience, optimized for your type of production, with working speeds of up 100 bags per minute.

Mechanical Characteristics

• Basic structure in painted steel or in AISI 304 stainless steel;
• Parts in contacy with the product in AISI 304/316;
• Supporto bobina ad espansione pneumatica;
• Svolgimento bobina con motorizzazione indipendente controllata elettronicamente;
• Tensione del film regolabile pneumaticamente;

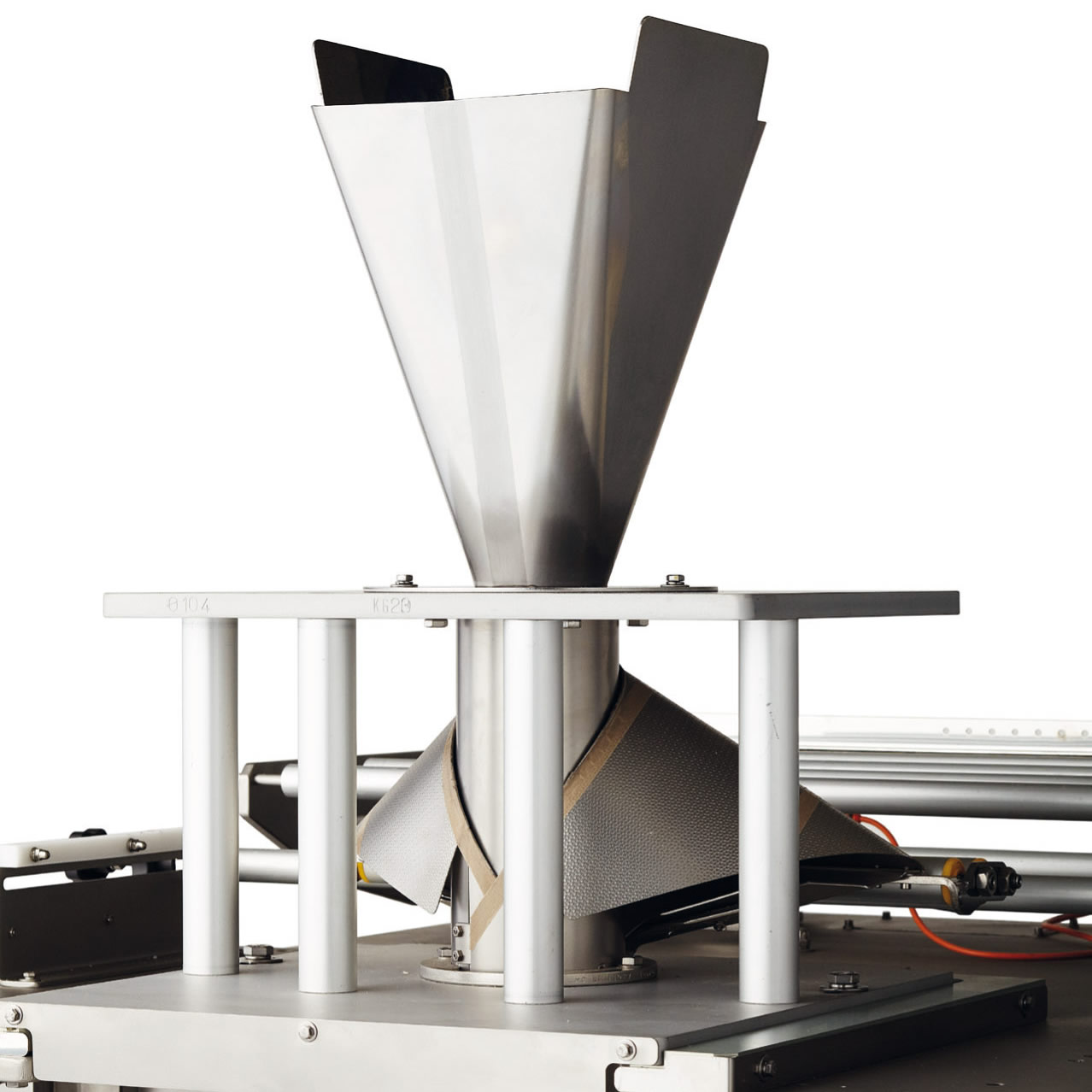

• Tubo formatore in acciaio inox, con profili adattati al materiale di incarto;

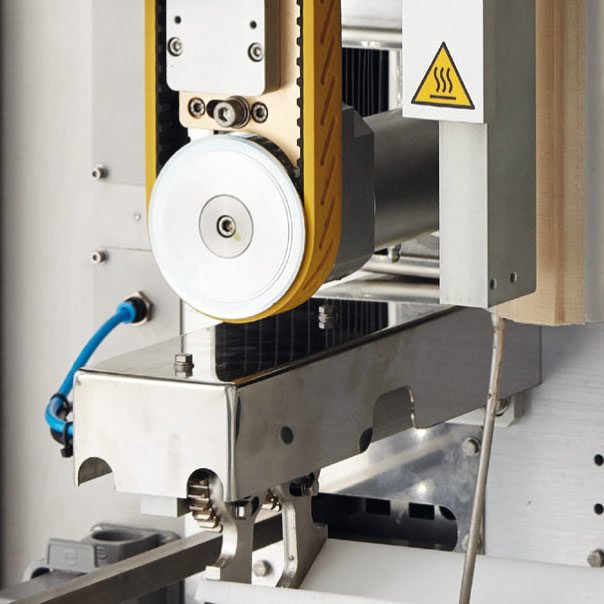

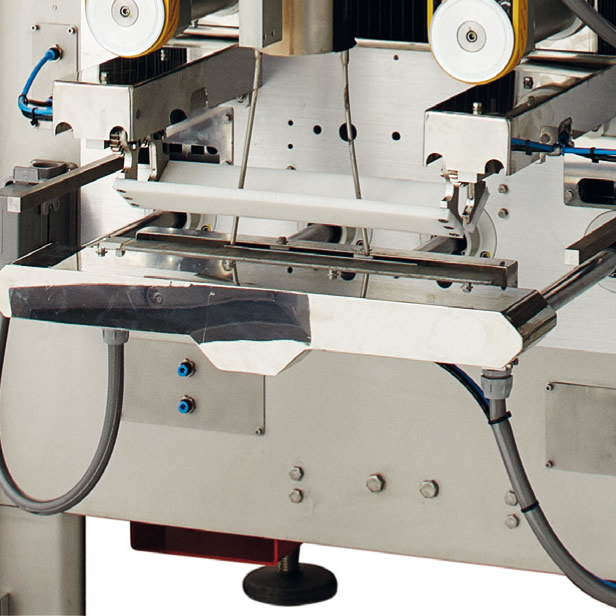

• Barre di saldatura azionate tramite motore brushless controllato da azionamento digitale di ultima generazione;
• Traino film con motorizzazione indipendente controllata elettronicamente.

Electrical Characteristics

• Electrical power supply 400 V 3 phase + neutral + eatrh;
• Indicative consumption 3 KW;
• All machine functions electronically controlled;
• Latest generation SIEMENS Control PLC, series 1200;

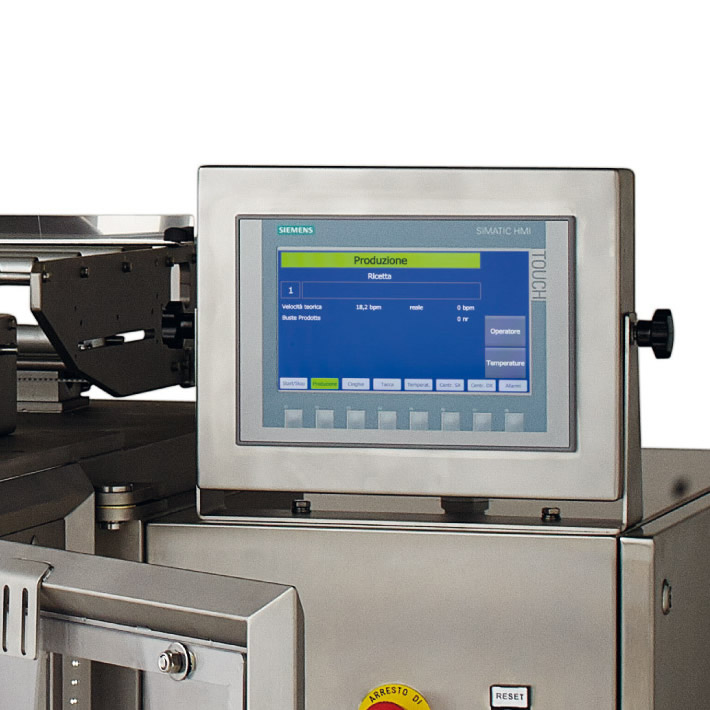

• SIEMENS touch screen operator panel;
• Memory capacity of 40 work programmes;
• Diagnostics signalling any type of fault;
• Electronic system for measuring and adjusting bag length;
• Sealing temperature memorised in the work programme.

Dosing systems

• Multihead weigher and linear weigher;
• Volumetric dosing cups or tilting, volumetric doser for frozen goods and scew doser;
• Piece counter and volumetric pump.

Special versions

• Entirely in stainless steel;
• Inclined for fragile products;
• Lowered;
• IP 65 waterproof protection;
• Separate cabinet;
• Inclinable to optimise processes, according to product fragility;
• ALLEN & BRADLEY;
• Horizontal sealing jaws with special movement for pseudoDoypack bags.

Main accessories

• Film pull with brushless motor and vacuum film pull;
• Print centring photocell;
• Vacuum system for pillow and square bottom bag;
• Block bottom and gusset bag;
• Gas injection and angle sealing;
• Printer and product timing shutter;
• Hopper blockage photocell;
• Automatic film centring system;
• Bag support plate for heavy bags;
• Labelling machine, clipping machine and separable cabinet;
• Right or left version;
• Bags with eurohole and bags with handle;
• Facilitated and sealed splice;
• Motorised roller;
• Motorised souble film reel holder and cantilever on reel holder;
• Automatic film change;
• Valve applicator for de-gassing and longitudinal zip applicator.
