Carton Header Machine

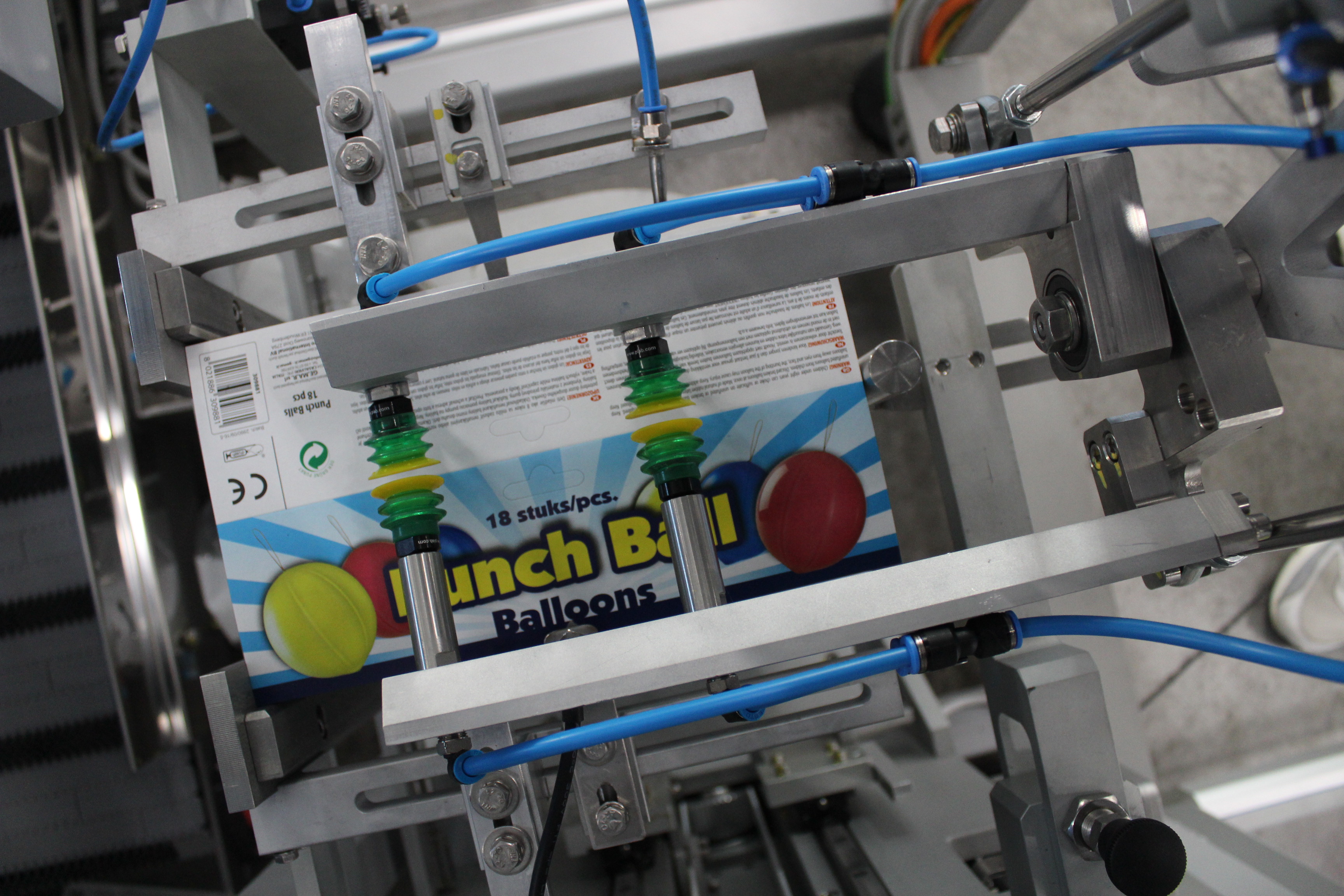

The Miele Carton header Machine are completely integrated into the packaging line and offer elevated productivity and are suprisingly easy to use with complete integration into the packing line, owing to software developed entirely by Miele. It is noted for its reliable performance and high quality materials, especially in its electronics. Machine to apply the carton header on to the bag, using completely new concepts that allow precision, speed and flexibility, usually uncommon in this kind of application.

Technical Characteristics

• Runnig Speed: up to 20/30 bpm with single head, 40/60 with double head (THE INDICATED SPEED IS THE MECHANICAL CYCLE. THE PRODUCTION SPEED CAN CHANGE DEPENDING UPON
  THE PRODUCT ITSELF, DOSE, INSTALLATION, LAYOUT AND PRODUCT FEEDING, OPTIONS INSTALLED);
• Machine Sizes: Width=2200mm, Height=1100mm; Length=1500mm;
• Power Supply: 380 Volts, 3 PHASE, 50 Hz, 6 kw;
• Air Supply: 6 bar / 300 nl/1′ (max);
• Net Weight: 800 kg;
• All parts in contact with the product: AISI 304 stainless steel;
• Control unit: integrated colour touchscreen;

Packaging Systems

• Combination with the vertical packing machine, giving maximum advantages thanks to the integration of electronic control;
• Automatic survey of the emptying of the loader of Carton headers;
• Quick change of format;
• Access to the system is very ergonomic.

Special Versions

• Double Head Version;
• Three-phase Version;

Principle Accessories

• Sealing of the Carton Header by glue and pressure (cold) or by sealing jaws (hot);

Motion

• Movement of each axis through Brushless engines at very low maintenance;
• Movement of the loader of Carton Headers by independent three-phase motor;

Control

• Simple and immediate user interfacing with few adjustments required;
• Subdivided, logical panel areas, password protected to prevent unauthorised access to programmes and system settings;
